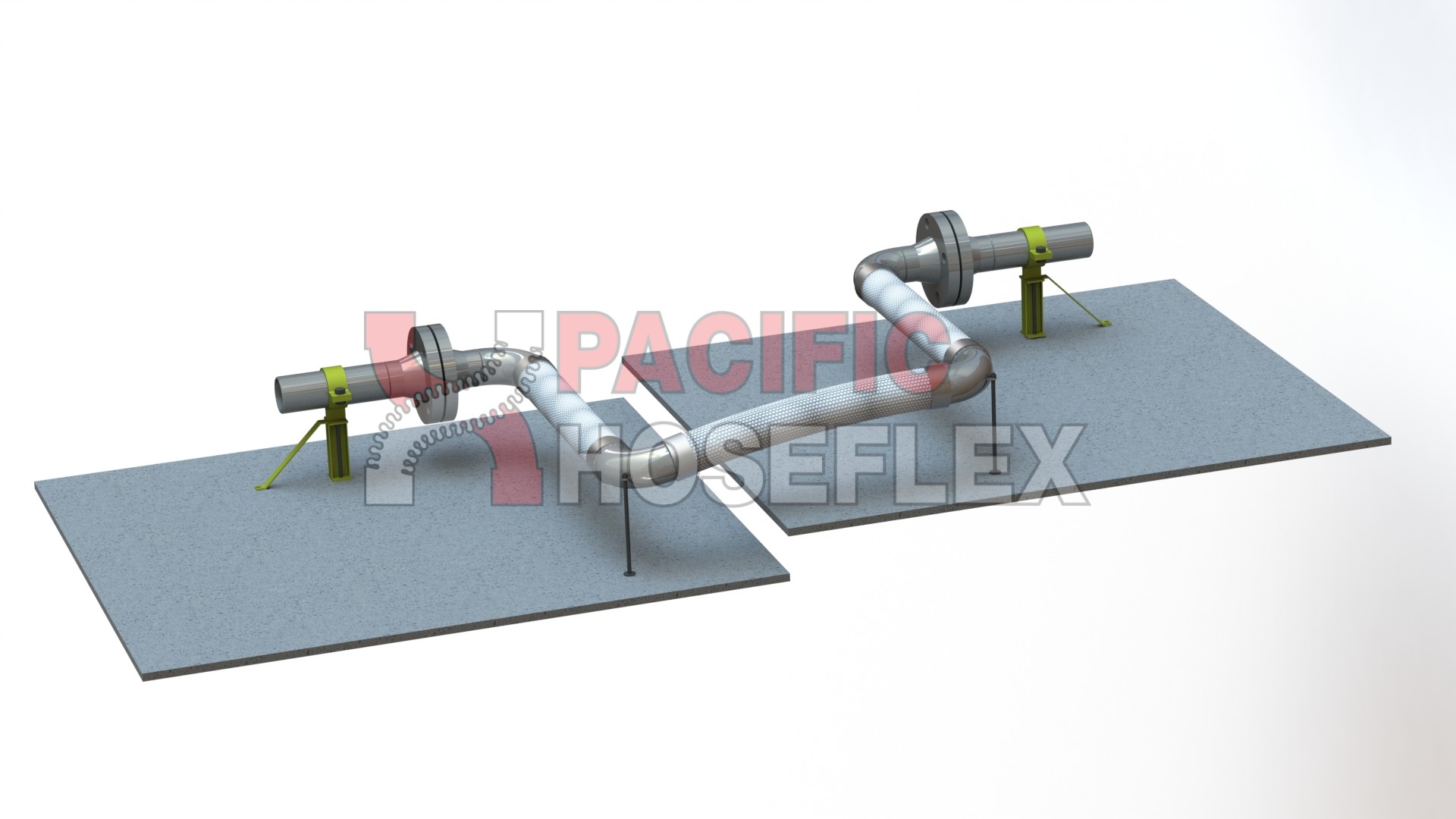

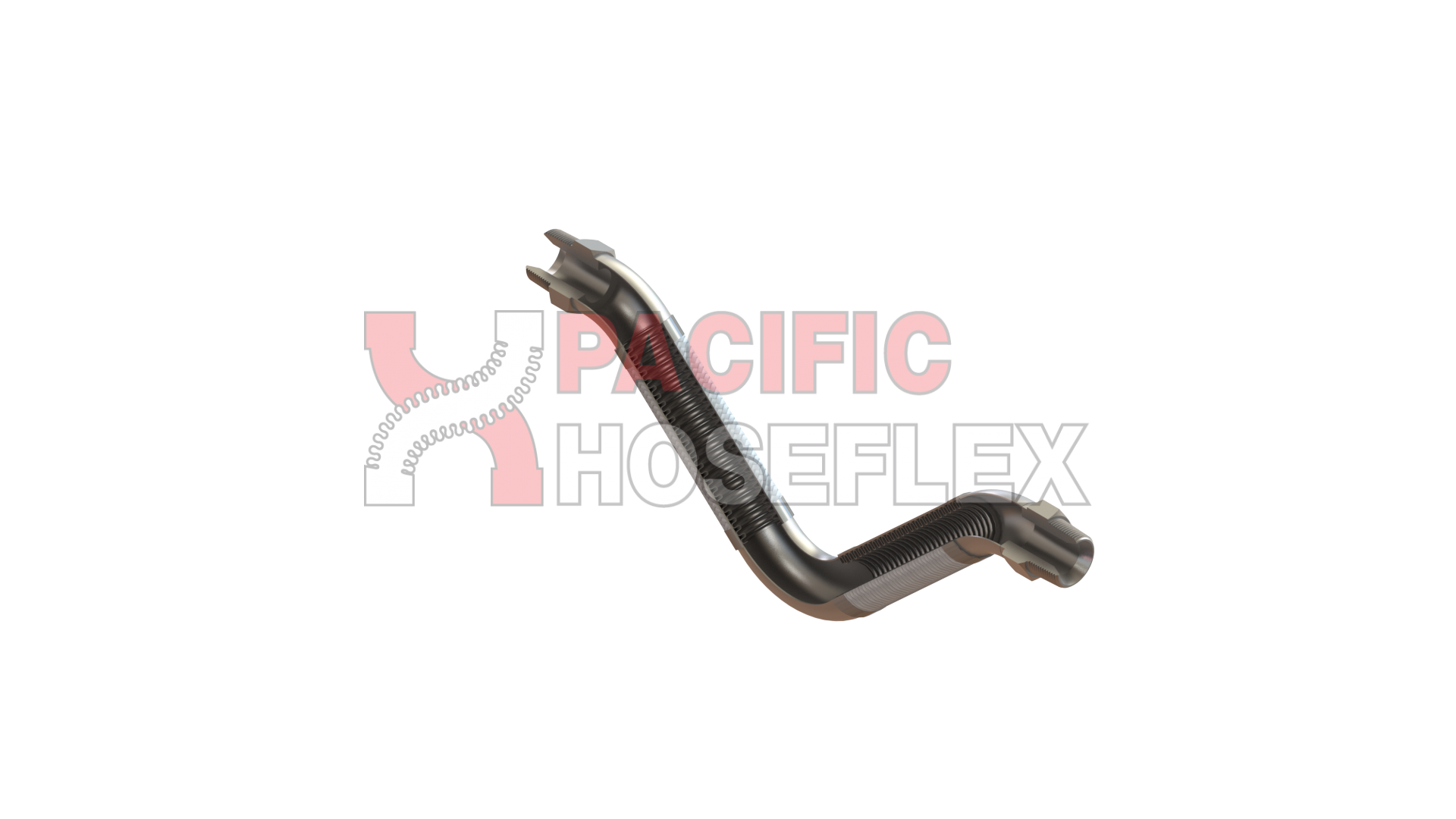

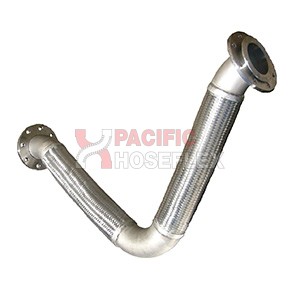

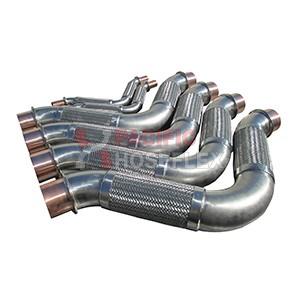

VITALFLEX® Seismic Joints V Shape

VITALFLEX® once again leads the industry with its innovative Seismic Joints, specifically designed in a V shape to accommodate a variety of applications and locations subject to seismic conditions or significant pipework movement. In areas prone to the unpredictable motion of earthquakes, these Seismic Joints are engineered to provide unparalleled flexibility, capable of movement in any direction to absorb the random motion associated with seismic events.

Description
Additional information

Description

Seismic Joints V Shape Use:

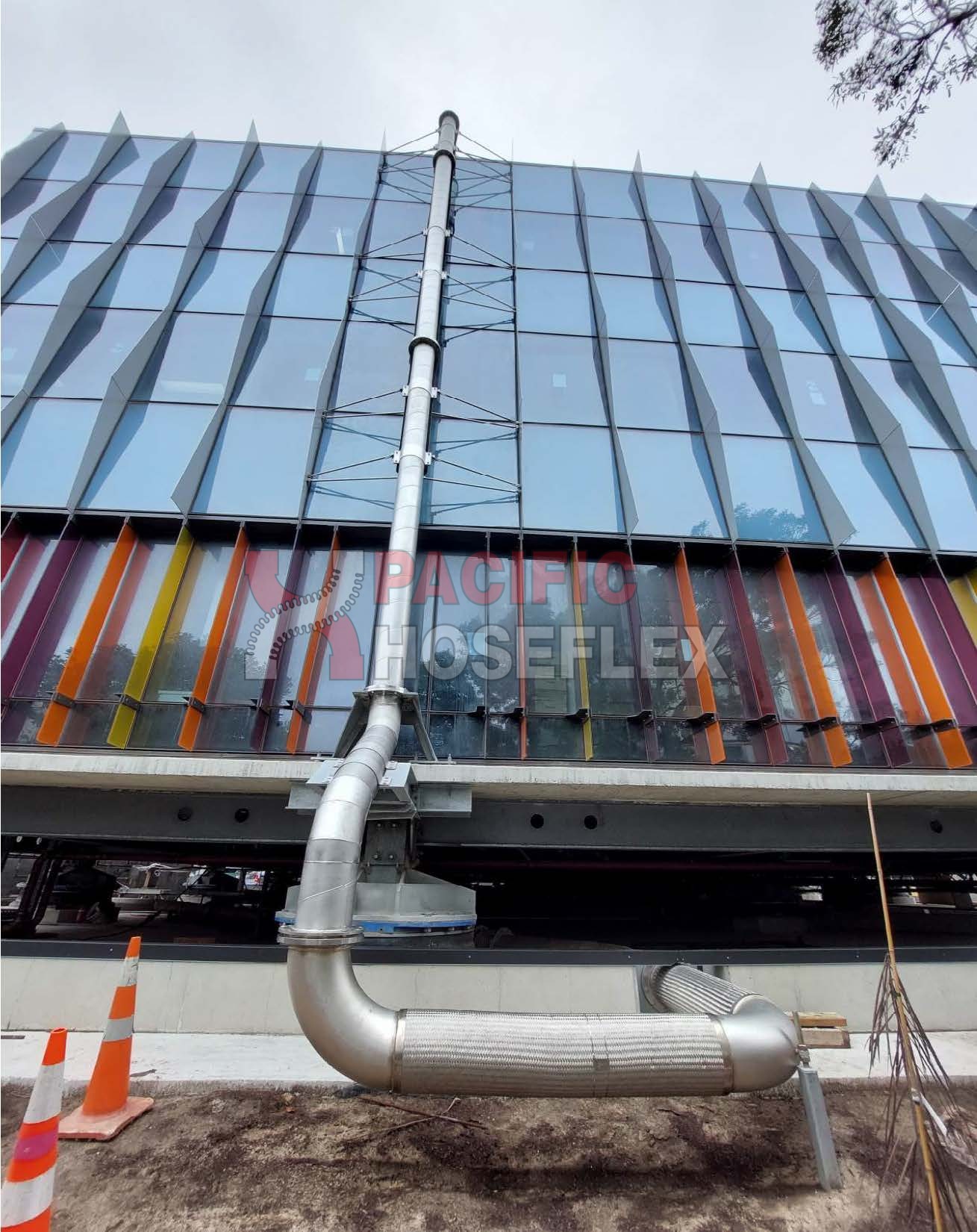

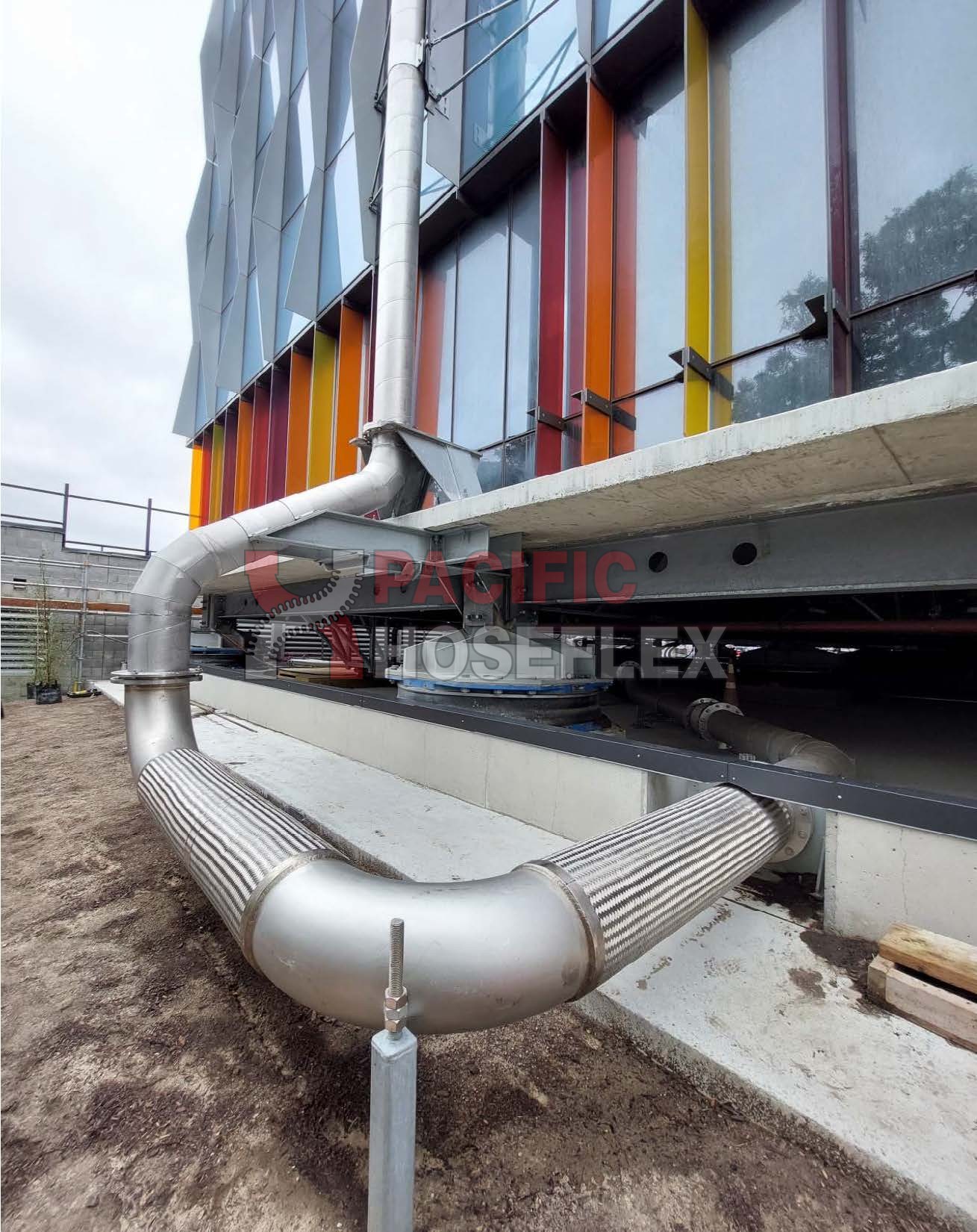

Used in a variety of applications and locations where subject to seismic conditions or large amounts of pipework movement. The random motion common to earthquakes requires that seismic expansion joints to be capable of movement in any direction.

Click here for Installation Guide.

Standards:
Corrugated Metal Hoses: ISO 10380
AGA Approved: AS 4631:2005 (upon requirement)
Watermark Approved: WMTS 520 (upon request)
Welding Compliant: AS 4041- Class 1 (upon request)
Seismic Rated: AS 1170 (upon request)
Seismic rated: NZS 4219 – 2009 (upon request)
Fire Protection Systems (upon request)

Additional information

Size	1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12"
Max Working Pressure kPa	1200 kPa, 1400 kPa, 1600 kPa, 1700 kPa, 2400 kPa, 2900 kPa, 3900 kPa, 4000 kPa, 4200 kPa, 5500 kPa, 7200 kPa, 8500 kPa
Max Temperature	700°c
Min Temperature	-276°c
