Standards:
Corrugated Metal Hose: ISO 10380:2012
AGA Approved: AS 4631:2005 (upon requirement)
Watermark Approved – WMTS 520:2016 (upon requirement)
Welding Compliant: AS 4041- Class 1 (upon request)
Seismic Rated: AS 1170:2007 (upon request)
Seismic Rated: NZS 4219 – 2009 (upon request)
Fire Protection Systems (upon request)

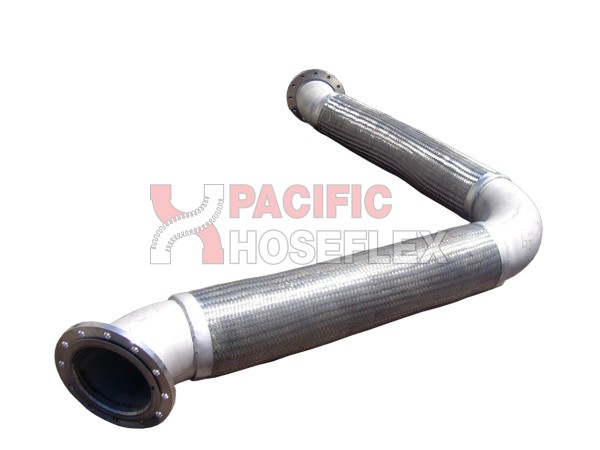

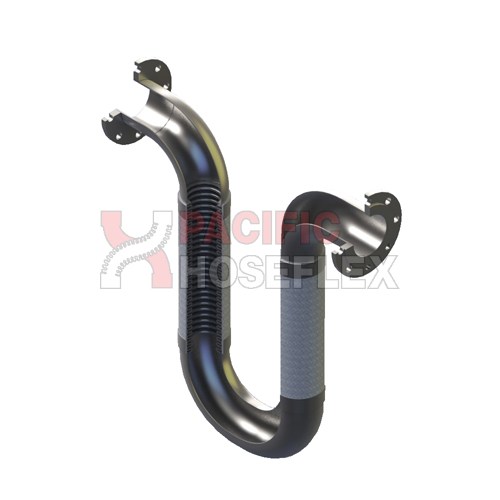

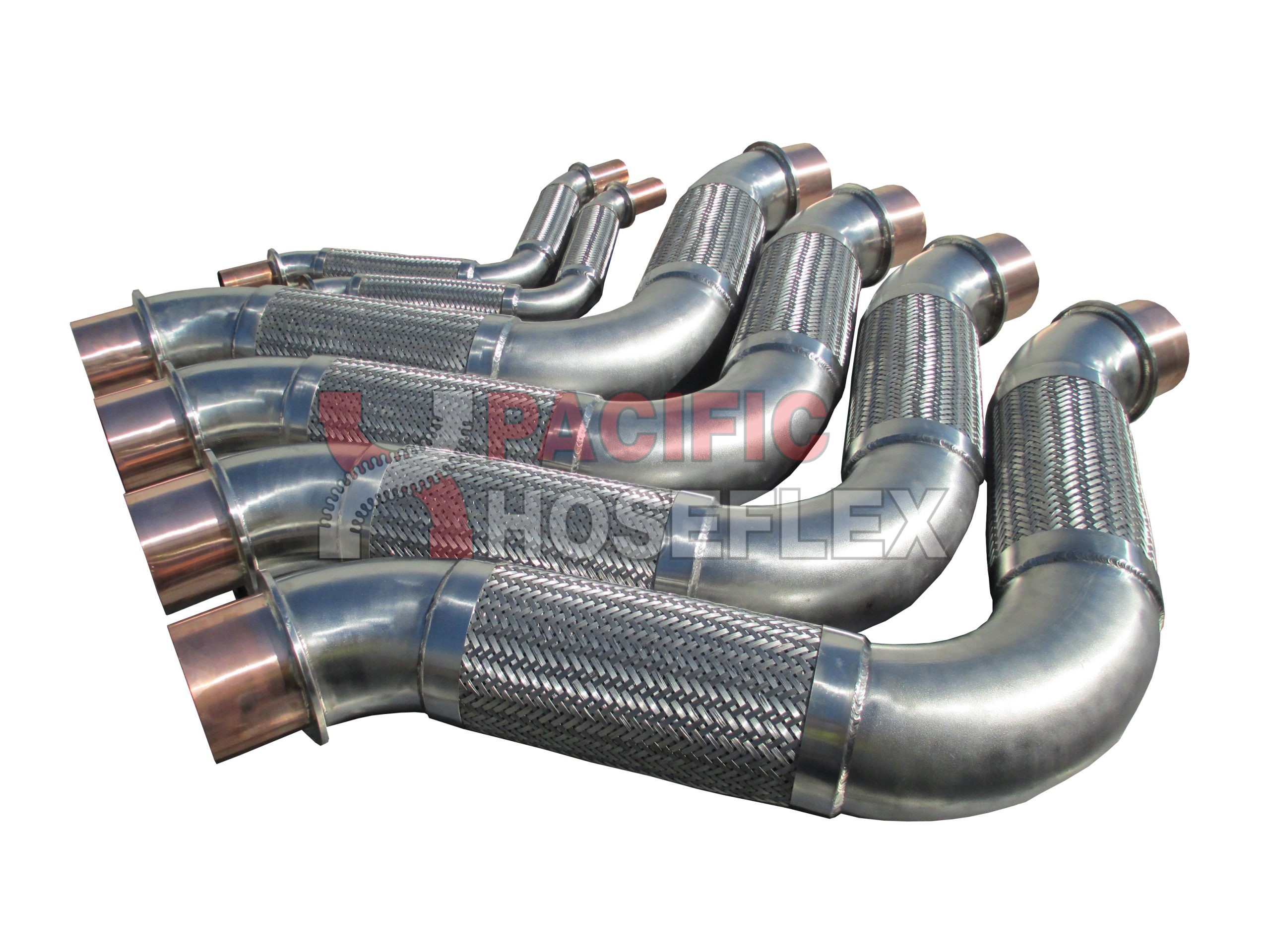

VITALFLEX® Seismic Joints U Shape Use:
Used in a variety of applications and locations where subject to seismic conditions or large amounts of pipework movement. The random motion common to earthquakes requires that seismic expansion joints to be capable of movement in any direction.
| Size | 1/2", 3/4", 1", 1 1/2", 1 1/4", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12" |
|---|---|
| Max Working Pressure kPa | 1200 kPa, 1400 kPa, 1600 kPa, 1700 kPa, 2400 kPa, 2900 kPa, 3900 kPa, 4000 kPa, 4200 kPa, 5500 kPa, 7200 kPa, 8500 kPa |
| Max Temperature | 700°c |
| Min Temperature | -276°c |
