Corrugated Metal Hoses: ISO 10380:2012
AGA Approved: AS 4631:2005 (upon request)
Watermark Approved – WMTS 520:2016 (upon request)
Welding Compliant to: AS 4041- Class 1 (upon request)
Seismic Rated: AS 1170 (upon request)
Fire Protection Systems (upon request)

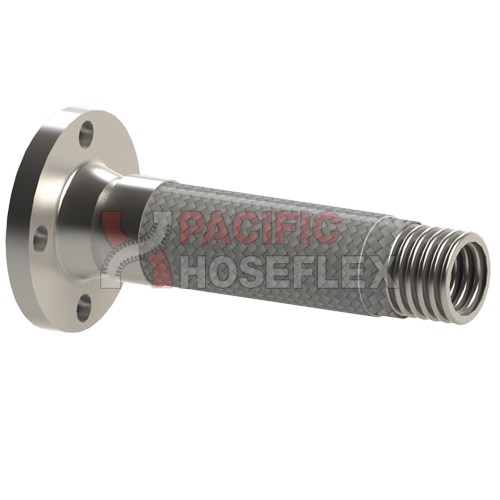

Flexible stainless steel convoluted hose with a high-pressure rating.
VITALFLEX® – High Pressure
SS1 – High Pressure Tube and Braid
SS2 – High Pressure Tube and Double Braid
Applicable Standards
Corrugated Metal Hoses: ISO 10380:2012
AGA Approved: AS 4631:2005 (upon request)
Watermark Approved – WMTS 520:2016 (upon request)
Welding Compliant to: AS 4041- Class 1 (upon request)
Seismic Rated: AS 1170 (upon request)
Fire Protection Systems (upon request)
| Size | 1/4", 3/8", 1/2", 3/4", 1", 1 1/2", 1 1/4", 2", 2 1/2", 3", 4", 6" |
|---|---|
| Max Working Pressure kPa | 3000 kPa, 3700 kPa, 6000 kPa, 6400 kPa, 9000 kPa, 9600 kPa, 11800 kPa, 12300 kPa, 14500 kPa, 16600 kPa, 24300 kPa, 28300 kPa |
| Max Temperature | 700°c |
| Min Temperature | -276°c |
