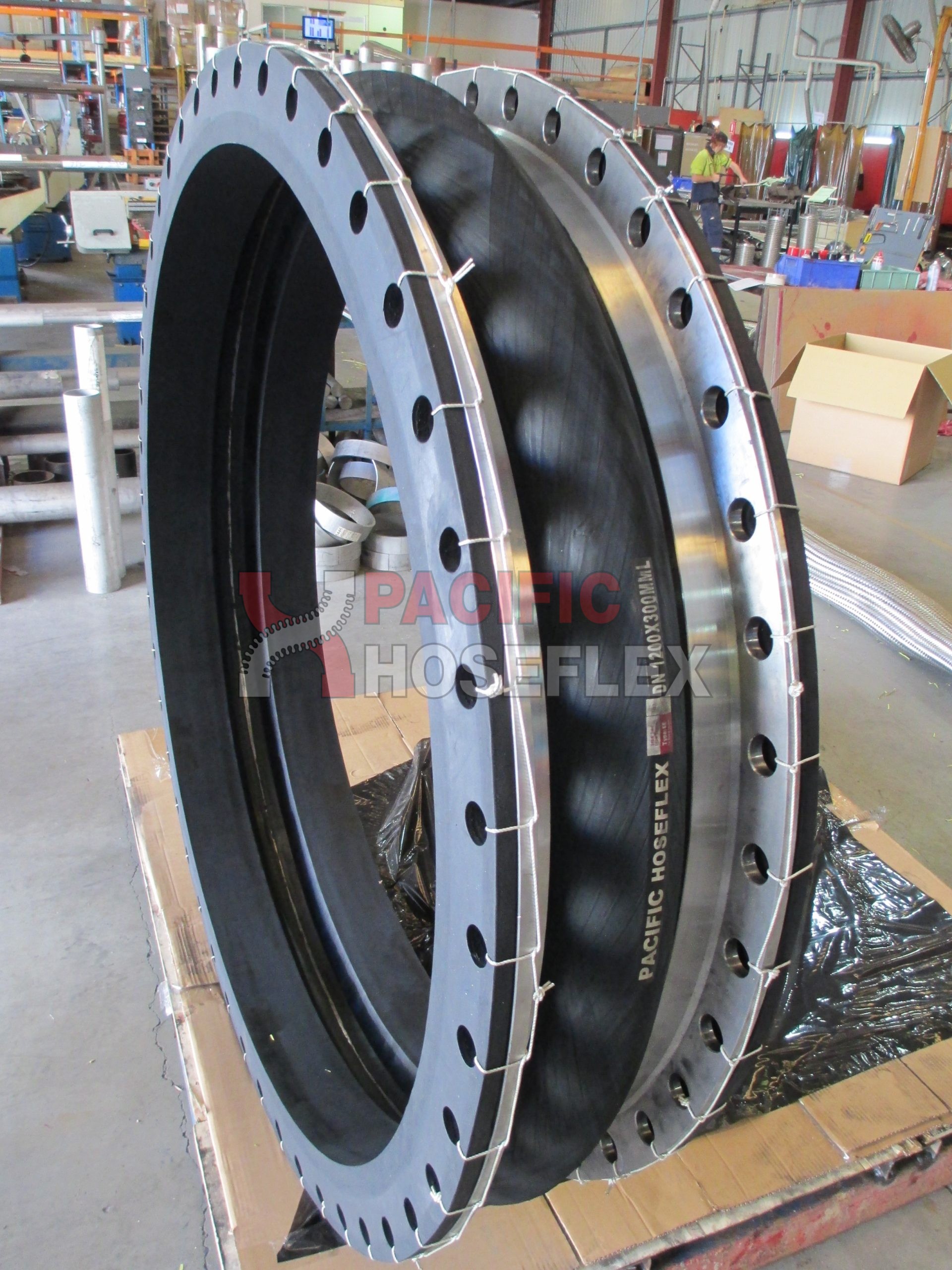

Single Sphere Rubber Expansion Joint

Name: Single Sphere Rubber Expansion Joint
SKU: 850
Availability: InStock

Price range: $58.00 through $338.50

Part No.: REJ

Max Working Pressure kPa

Size

Clear

SKU: N/A Category: Rubber Expansion Joints

Description
Additional information

Description

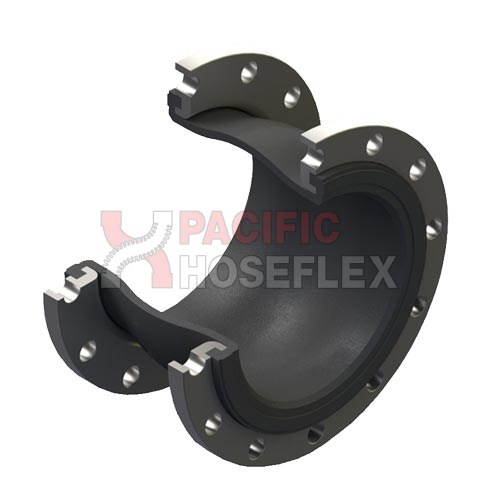

Single Sphere Rubber Joint Use:
Rubber expansion joints are designed to alleviate piping stress, absorb pipe misalignment, compression and extension, noise and vibration, in a relatively short space.

Click Here for Installation Guide >

Additional information

REJ Size	1 1/2" EPDM (95mm END TO END), 1 1/4" EPDM (95mm END TO END), 10” EPDM (240mm END TO END), 12” EPDM (260mm END TO END), 14” EPDM (265mm END TO END), 16” EPDM (265mm END TO END), 18” EPDM (265mm END TO END), 2 1/2" (175mm END TO END), 2 1/2" EPDM (115mm END TO END), 2" EPDM (105mm END TO END), 20” EPDM (265mm END TO END), 24” EPDM (265mm END TO END), 3" EPDM (130mm END TO END), 4" EPDM (135mm END TO END), 5" EPDM (170mm END TO END), 6" EPDM (180mm END TO END), 8'' EPDM (205mm END TO END)
Flange	AS 2129 TAB 'E' M/S Hot Dip Gal Flange, ASME B16.5 ANSI 150 lb M/S Hot Dip Gal Flange
Max Working Pressure kPa	800 kPa, 1000 kPa, 1550 kPa
Max Temperature	100°c
Min Temperature	-30°c
Size	1 1/2", 1 1/4", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 22", 24"
