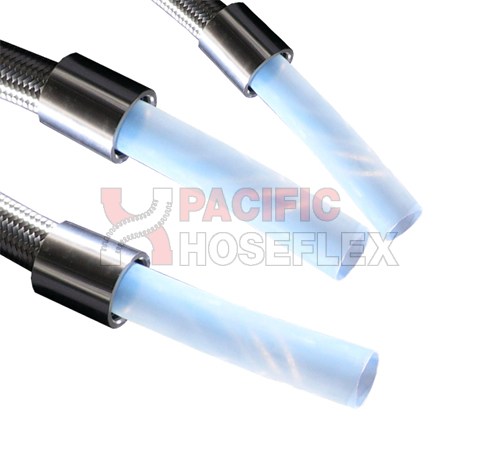

R14 PTFE Smoothbore

Price range: $12.86 through $80.75

Description

PTFE Smoothbore Use:
The inner hose core is manufactured from PTFE (Teflon®) No pigments or additives are incorporated, thus giving the hose liner a translucent appearance free from any contamination.

Standards: FDA Approved, Accepted by the U.S. Coast Guard, PTFE Perfluorocarbon Resins meets FDA 21 CFR 177.1550 ISO 1402 – Rubber and plastic hose and assemblies – hydrostatic testing SAE J517 – Dimensional and performance Specification SAE 100R14 – PTFE Dimensional and performance Specification Sintered/Permeation: Slow Sintered (medium level of permeation)



Additional information

Size

1/8", 3/16", 5/16", 1/4", 13/32", 3/8", 1/2", 3/4", 5/8", 7/8", 1", 1 1/8"

Braid Material

316 S/S

Max Working Pressure kPa

5200 kPa, 6300 kPa, 6900 kPa, 7600 kPa, 8700 kPa, 10400 kPa, 13800 kPa, 15600 kPa, 17300 kPa, 18100 kPa, 20700 kPa

Max Temperature

260°c

Min Temperature

-70°c
