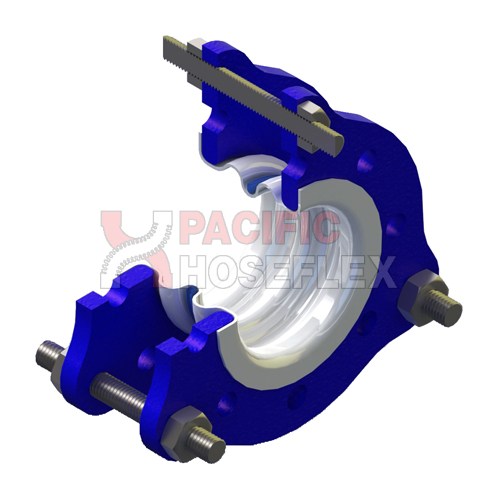

PTFE Expansion Joint 2 – Convoluted (PEJ2)

  • Part No.: PEJ2
  • Construction: Convoluted
  • Profile: High Flexibility / Medium Pressure
  • Liner: Optional
  • Size Available: 1’’ – 12’’(Larger sizes upon Request)
  • Temperature: 10°C +204°C

This product is currently out of stock and unavailable.

SKU: N/A Category:

Description

PTFE Expansion Joint 2 – Convoluted Use:
PTFE bellows are specifically designed to compensate for pipe expansion, vibration and misalignment in process piping and vessels. PTFE bellows are constructed from uniform-walled isostatically molded PTFE and demonstrate a high level of design consistency throughout the product line.

Additional information

Max Working Pressure kPa

1100 kPa, 1200 kPa, 1400 kPa
Size

1", 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12"
Max Temperature

200°c
Min Temperature

-10°c
